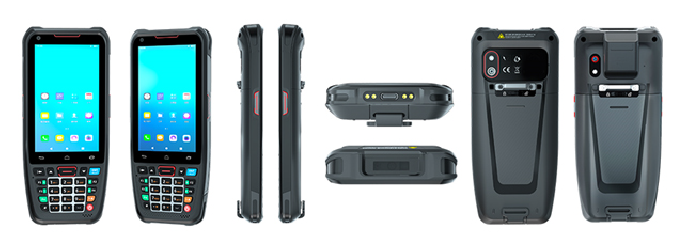

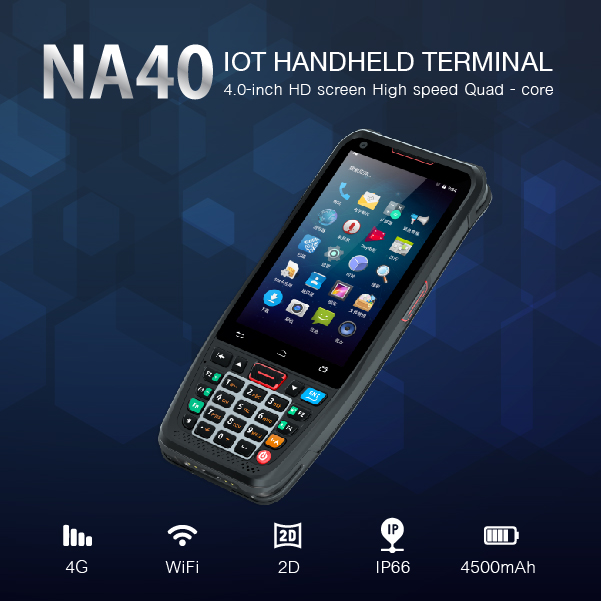

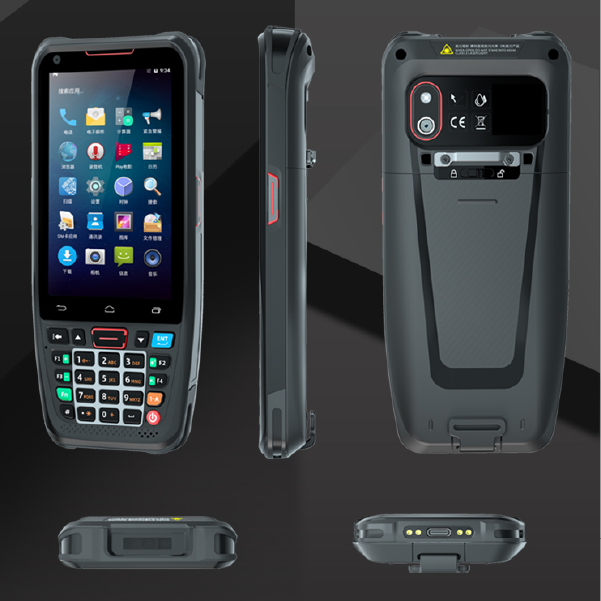

Handheld NA40
With Keyboard for warehouse management
Android
PSAM
GPS
Camera
Blue-Tooth
1D
2D Scanning
NFC
4G
WIFI
Product Paramenters
| Performance | |
|---|---|
| CPU | ARM cortex-A53 Quad core 64 bit 1.3GHz processor |
| RAM+ROM | 2GB+16GB |
| Expand memory | Micro SD(TF) Supports up to 128GB |

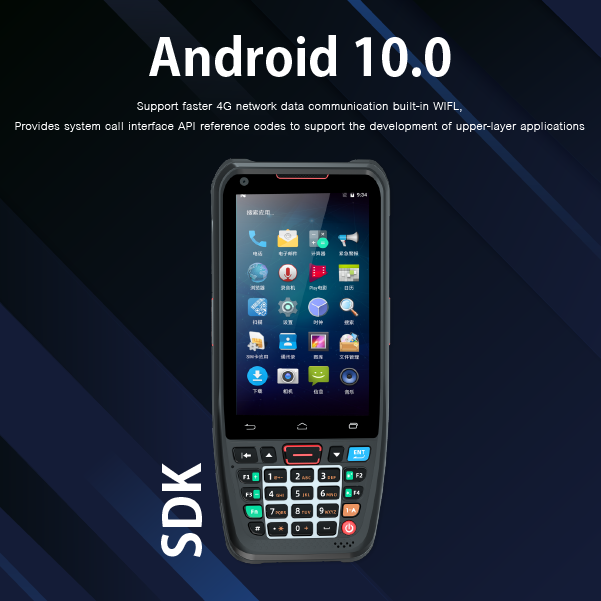

| System | Android 10.0 |
| Data communication | |
| WLAN | Dual-band 2.4GHz / 5GHz, Supporting IEEE 802 a/b/g/n/ac protocol |
| WWAN | 2G：GSM（850/900/1800/1900MHz） |
| 3G：WCDMA（850/900/1900/2100MHz) | |
| 4G：FDD:B1/B2/B3/B5/B7/B8/B20 TDD:B38/B41 | |
| Blue-tooth | Support Blue-tooth 2.1+EDR/3.0+HS/4.0+HS Transmission distance 5-10 meters |
| GPS | Support GPS or AGPs |
| Physical parameter | |
| Dimension | 162mm×71.5mm×17 (The thinnest part) mm |
| Weight | ＜300g |
| Display | 4.0 inch TN color display with resolution 480*800 |
| TP | Support multi-touch |
| Battery capacity | Rechargeable polymer battery (3.8V 4500mah) removable |
| Standby time >350 hours | |
| Working time > 12 hours | |
| Charging time ＜5H, using standard power adapter and data cable | |
| Expansion Card slot | Nano SIM card x 2, TF card x 1 |
| Communication interface | Type-C 2.0 USB x 1, supporting OTG function |
| POGO Pin x 1 | |
| Audio | Speaker (mono), Microphone, Earpiece |
| Keypad | 25 soft and hard rubber buttons, left button x1, right button x1 |
| Sensor | Gravity sensor, light sensor, distance sensor, vibration motor |
| Data collection | |

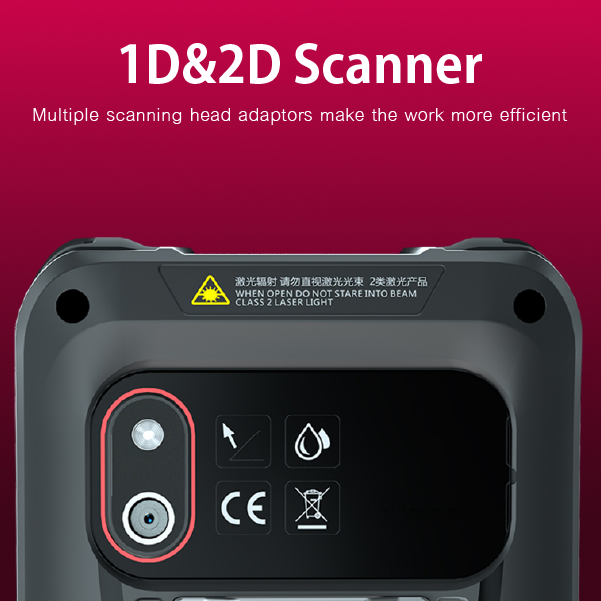

| Barcode scanning (Optional) | |
| 1D Linear scanner | Honeywell N4313 |
| 1D Symbologies | Code128,EAN-13,EAN-8,Code39,UPC-A,UPC-E,Codaber,Interleaved 2 of 5,China post 25,ISBN/ISSN,Code93,UCC/EAN-128,GS1 Databar,HIBC, |
| 2D Imager scanner | Mindeo E483/ EM6601, Honeywell N6603/ N3603 |
| 2D Symbologies | PDF417,Micro PDF417,GS1 Composite,Aztec Code,Data Matrix,QR Code,Micro QR Code,MaxiCode,Hanxin Code, |
| Camera（standard) | |
| Rear camera | 800W pixel HD camera Support auto focus, Flash, Anti-shake, Macro shooting |
| Front camera | 500W pixel color camera |
| NFC (Optional) | |
| Frequency | 13.56MHz |
| Protocol | Support ISO14443A/B, 15693 agreement |
| Distance | 2cm - 5cm |
| User environment | |
| Operating Temperature | -20℃ - 55℃ |
| Storage Temperature | -40℃ - 70℃ |
| Environment Humidity | 5%RH--95%RH (no condensation) |
| Drop Specification | In the operating temperature range, 6 sides can withstand 1.2m height |
| Rolling Test | 500×0.5m rolling for 6 sides |
| Protection Sealing | IP66 |
| Language/Input method | |
| Input | English, Pinyin, Five strokes, Handwriting input, Support soft keypad |
| Language | Language packs in Simplified Chinese, Traditional Chinese |
| English, Korean, Japanese, Malaysian, etc. | |
| 30 impacts on concrete floor | |
| Accessories | |
| Standard | Adapter, Data cable, Protective film, Instruction manual |
