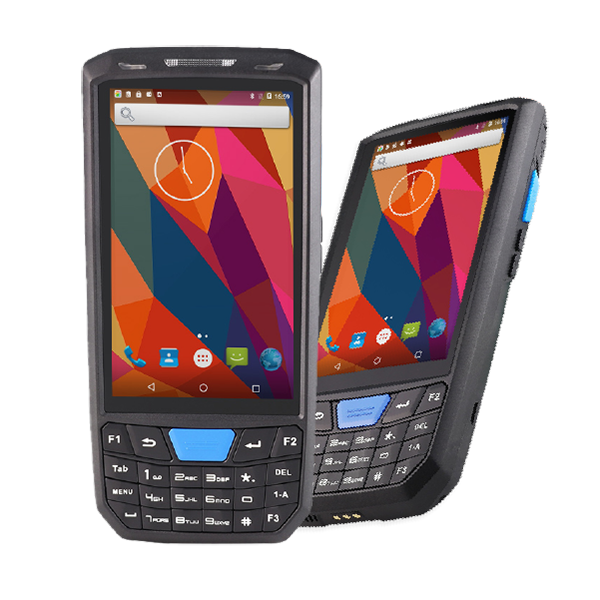

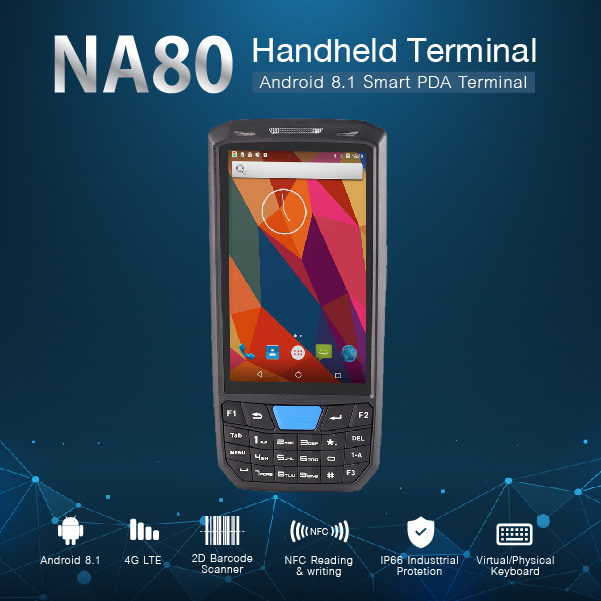

Handheld NA80
Handheld Barcode Scanner Portable Rugged PDA Scanner
Android
PSAM
GPS
Camera
Blue-tooth
1D
2D Scanning
NFC
4G
WIFI
Product Paramenters
| Product parameters | |
|---|---|
| Performance | |
| Quad core | |
| CPU | Cortex-A53 Quad core 64 bit 2.0GHz high-performance processor |
| RAM+ROM | 2GB+16GB Support up to 3GB+32GB |
| Expand memory | Micro SD(TF) Supports up to 128GB |
| System | Android 9.0 |
| Data communication | |
| WLAN | Dual-band 2.4GHz / 5GHz, Supporting IEEE 802 a/b/g/n/ac protocol |
| WWAN | 2G: GSM (850/900/1800/1900MHz) |
| 3G: WCDMA (850/900/1900/2100MHz) | |
| 4G: FDD:B1/B3/B4/B7/B8/B12/B20 TDD: B38/B39/B40/B41 |
|
| Bluetooth | Support Bluetooth 2.1+EDR/3.0+HS/4.1+HS Transmission distance 5-10 meters |
| GPS | Support GPS, Galileo, GLONASS and Beidou |
| Camera | Rear 8.0 MP automatic focusing |
| Speaker | build in 8Ω/0.8W waterproof speaker x 1 |
| Mic | Sensitivity::-42db, output resistance2.2kΩ |
| Data communication | |
| WIFI | WIFI 802.11(a/b/g/n) |
| Bluetooth | BT4.0 transmission distance：10m |
| 4G/3G/2G | 2G: GSM 900/1800 |
| 3G: WCDMA Band1 Band8 TD-SCDMA Band34 Band39 CDMA BC0 DCS1800 EGSM900 | |
| 4G: LTE-FDD B1 B3 B8 LTE-TDD B38 B39 B40 B41 | |
| GPS | Yes |
| Physical parameter | |

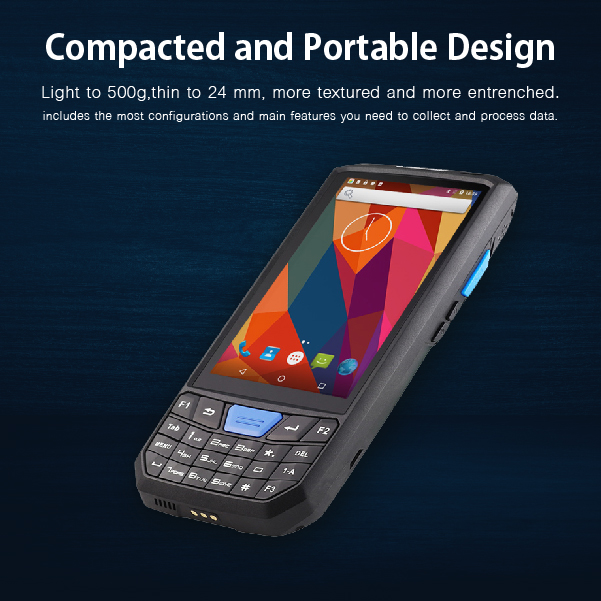

| Dimension | 166mm×77.5mm×22mm |
| Weight | < 500g |
| Display | 4.5 inch IPS color display with resolution 480*854 |
| TP | Corning Gorilla glass, support multi-touch Supported gloves and wethands |

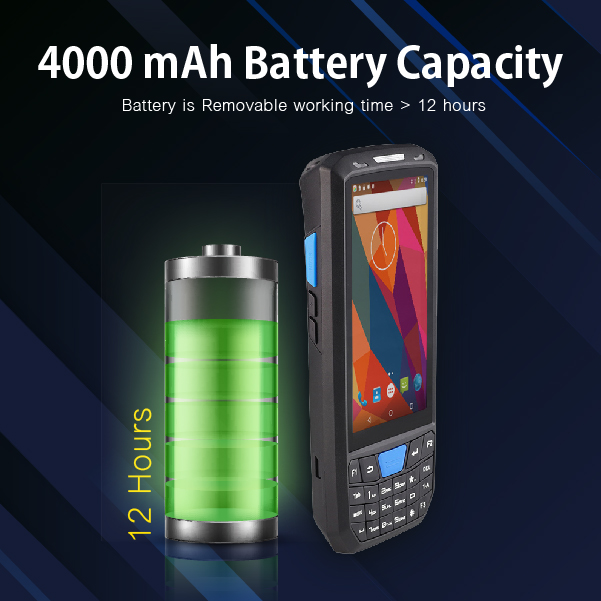

| Battery capacity | Rechargeable polymer battery (3.8V 4200mah) removable |
| Working time > 12 hours | |
| Charging time < 4H, using standard power adapter and data cable |
|
| Expansion card slot | PSAM x 2, Micro SIM card x 1, TF card x 1,POGO Pin x 1 |
| Communication interface | Type-C USB x 1,OTG |
| Audio | Speaker (mono), Microphone, Earpiece |
| Keypad | Support touch screen soft keypad and physicak keypad |
| Sensor | Gravity sensor, Vibration motor |
| Data collection | |

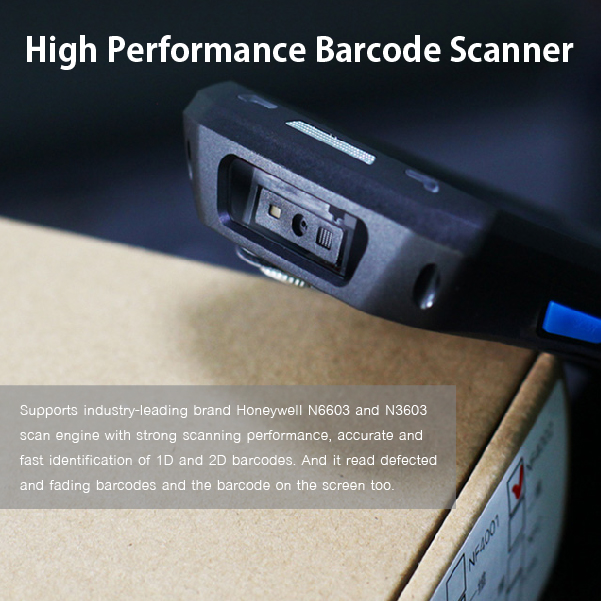

| Barcode scanning (Optional) | |
| 1D Linear scanner | Honeywell N4313 |
| 1D Symbologies | Code128,EAN-13,EAN-8,Code39,UPC-A,UPC-E,Co daber, Interleaved 2 of 5,China post 25, ISBN/ISSN,Code93,UCC/EAN-128,GS1 Databar,HIBC,etc. |
| 2D Imager scanner | Honeywell N6603 |
| 2D Symbologies | PDF417,Micro PDF417,GS1 Composite,Aztec Code,Data Matrix,QR Code,Micro QR Code,MaxiCode,Hanxin Code,etc. |
| Camera | |

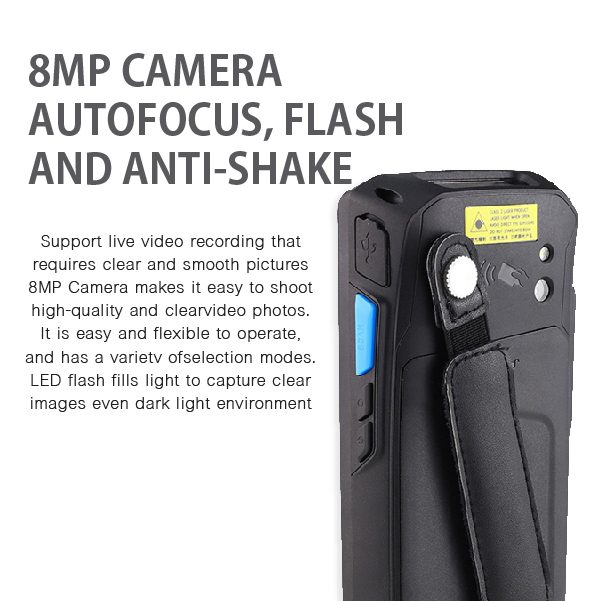

| Rear camera | 8MP HD camera Support auto focus, Flash, Anti-shake, Macro shooting |

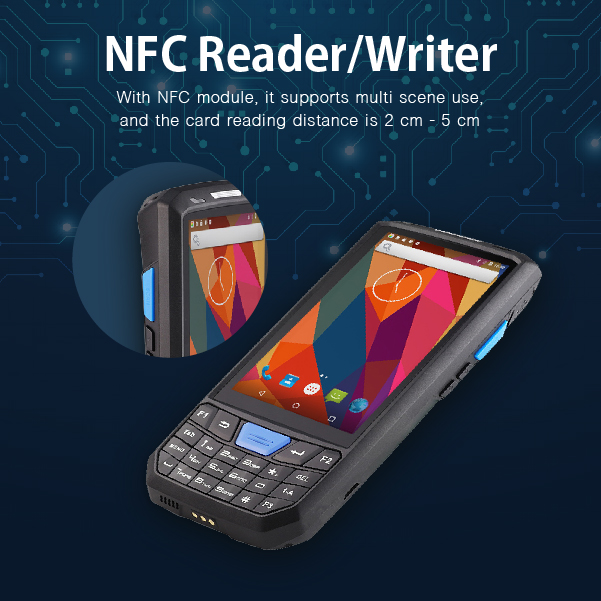

| NFC (Optional) | |
| Frequency | 13.56MHz |
| Protocol | Support ISO14443A/B, 15693 agreement |
| Distance | 2cm - 5cm |
| User environment | |
| Operating Temperature | -20℃ - 55℃ |
| Storage Temperature | -40℃ - 70℃ |
| Environment Humidity | 5%RH--95%RH (no condensation) |
| Drop Specification | 6 sides Supports 1.5 meters drops and 30 times to the concrete within the operating temperature |
| Rolling Test | 500×0.5m rolling for 6 sides |

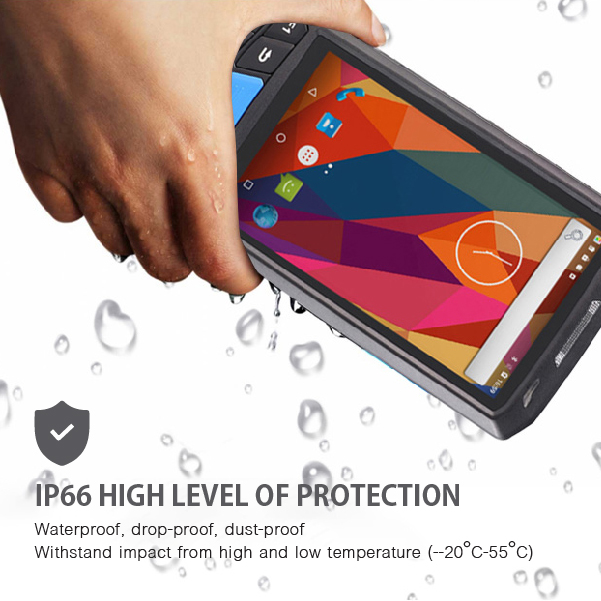

| Protection Sealing | IP66 |
| Language/ Input method | |
| Input | English, Pinyin, Five s trokes, Handwriting input, Support soft keypad |
| Language | Language packs in Simplified Chinese, Traditional Chinese,English, Korean, Japanese, Malaysian, etc. |
| Accessories | |
| Standard | Ins truction manual Adapter, Data cable, Protective film, |
