Printer Specifications
Printer Mode : Thermal Transfer & Direct Thermal
Maximum Print Width : 4.25″/108mm
Maximum Print Speed : 152mm (6″) / second
Maximum Print Length : 25,400mm (1000″)
Resolution : 203dpi (8 dots/mm)
CPU : 40MHZ, 32-bits, ARM9
Memory RAM : 64MB SDRAM
Memory ROM : 128MB Flash Memory

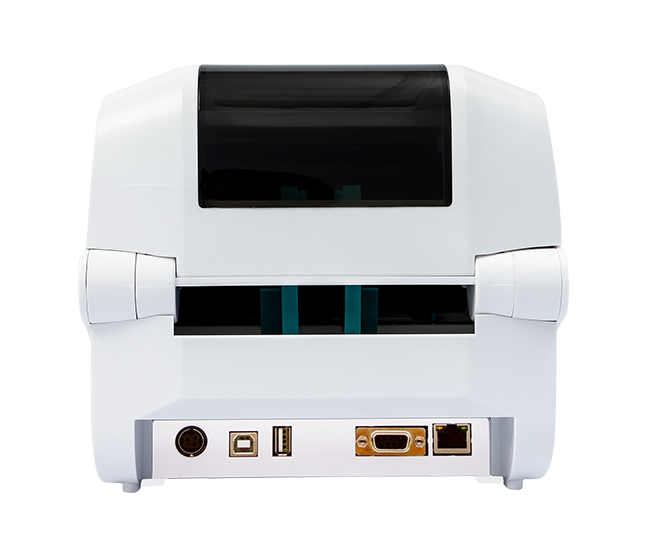

Interface : USB 2.0 High Speed 480Mbps
USB Hot 2.0, for scanner or PC keyboard RS-232
Internal Ethernet 10/100Mbps
Internal Bluetooth 4.0 (factory option)
Internal Wi-Fi (factory option)
Real Time Clock : Standard (CR2032 battery install)
Buzzer : Standard
Dealer options : Guillotine cutter (full cut and partial cut)
Sensors : Head open sensor, Ribbon end sensor, Reflective sensor(moveable), Transmissive sensor (moveable)
Power : Extermal universal switching power supply
Input: AC 100-240V, 2.5A, 50-60Hz, Output: DC24V,2.5A, 60W
User Interface : 8 alpha-numeric bitmap fonts
True type font engine (need download scalable font file)
1D Barcode : Code 11, Code 39, Code 93, Code 128 (subsets A, B, C), UPC-A, UPC-E, UCC-128, Codabar,EAN/JAN-8, EAN/JAN-13, Interleaved 2 of 5, ITF14, MSI Pleassy, PostCode, Telepen
2D Barcode : QR Code, Micro QR Code, PDF417, Micro PDF417, Grid Matrix,MaxiCode, Aztec Code, Data Matrix
Rotation : Font and barcode support 0, 90, 180, 270 degree
Printer language : Compatible to EPL, ZPL, ZPLIl, DPL
Ribbon : 300 M long, max. OD 67mm, 1″core (ink coated outside)
Ribbon width : 30mm~110mm (1.18″~4.3″)
Media type : Continuous, die-cut, black mark, fan-fold, notched(outside wound)
Media thickness : 0.055~0.254mm (2.17~10mil)
Media core diameter : 25.4mm (1″)
Label roll capacity : 127mm (5″) OD
Label length : 5~25,400mm (0.2″~1000″)
Physical dimension : 210mm x 180mm x 278mm (WHD)
Weight : 2.2kg
